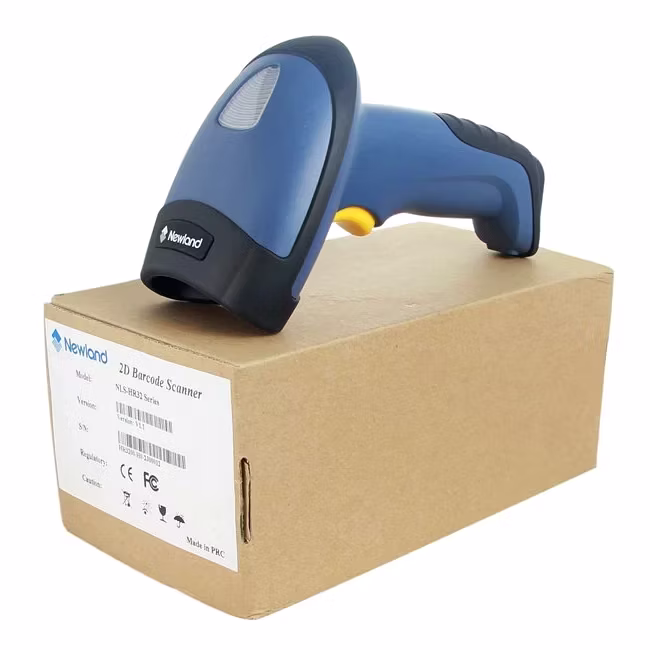

TVSE HR-32 2D WIRED BARCODE SCANNER
Inclusive of all taxes
You Save: 11100. Discount: 65.68%
-
Product is not available
RSC1077
In Stock
TVSE
Country Of Origin : China
Image Sensor 1280?800 (megapixel) CMOS
Illumination Red LED/ White LED
Symbologies 1D
2D
Postal EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey, etc.
PDF417, QR Code, Data Matrix, Aztec, Maxicode, etc.
USPS Postnet, Royal Mail, KIX Post, Australian Postal, etc.
Resolution ?3mil
Typical Depth of Field EAN-13
Code 39
PDF 417
Data Matrix
QR Code 55mm-570mm (13mil)
115mm-170mm (5mil)
85mm-225mm (6.7mil)
65mm-305mm (10mil)
25mm-395mm (15mil)
Scan Angle Pitch: ?55?, Skew: ?55?, Roll: 360?
Min. Symbol Contrast 25%
Field of View Horizontal 39?, Vertical 24?
Aiming Green LED
Physical
Dimensions (L?W?H) 113.5(W)?73.3(D)?159.0(H)mm
Weight 162g
Notification Beep, LED
Operating Voltage 5VDC?5%
Current@5VDC Operating
Idle 238.2mA (typical), 260.5mA (max.)
71.3mA
Interfaces RS-232, USB
Rated Power Consumption 1289.6mW (typical)
ADVANTAGES
CMOS imager with megapixel camera
25% print contract and 3 mil resolution
Extensive data capture ability
Durable exterior with IP 42 sealing and 1.5m drop resistance
-
Additional Information
With an objective to fulfill the demands of our clients, we are engaged in providing a wide array of Nls Hr32 2D Barcode Scanners
Durable Construction
The NLS-HR3280, built into an IP42-sealed and drop resistant (1.5m) housing, can stand up to tough environments.
Extensive Data Capture Capabilities
Armed with Newland’s six-generation of UIMG® technology, the HR3280 provides the added value of postal barcodes decoding, extending its data capture capabilities.
.Ideal On-screen Barcode Scanning Solution
The HR3280 delivers unmatched reading performance for various O2O applications involving on-screen barcodes even when the screen is covered with protective film or set to its lowest brightness level.
Powerful Data Editing Capability
The scanner allows customizing scanned data with ease and provides supporting software to address diverse application needs.
User-friendly Dual-color Illumination
Designed with the end user in mind, the HR3280 combines both red and white LEDs, and the ability to use them separately or together to meet the lighting requirements of various applications.
